Bow Spring Centralizers

Slip on Single Piece Bow Spring Centralizer

1.Shuttle bow spring
2.Higher restoring force than API standard
3.Integrate steel plate to process
4. Paint baking
5.Any size available

  • Slip on Single Piece Bow Spring Centralizer
■ Product's advantage

Features
• Rating—API Specification Standard
•Design features
– Smooth bow profile overall
–Non-welded
–Made to gauge
– Integral bow design for increased strength and performance
– Zero weak points, such as hinges, welds, or mechanical interlocks
– Flexible to absorb both axial and radial loading
– Powder coated red finish
•Performance
– Zero start and running force with exceptional restoring force
– Improved flow by area and improved pipe rotation
– Low torque and low drag units
– Improved zonal isolation
•  Applications
– Used in most well applications and geometries for vertical, horizontal extended reach drilling, close tolerance, or underreamed well conditions
– Specialized in centralization for underreamed sections
•  Recommended to be run between limit clamps
•  Sizes available—4-1/2 to 20 in.; custom sizes available

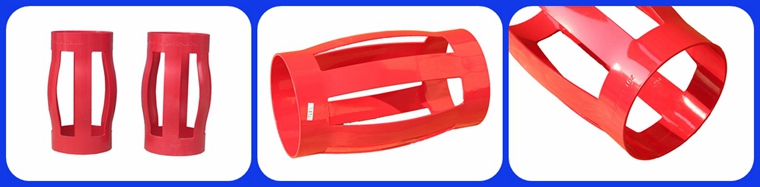

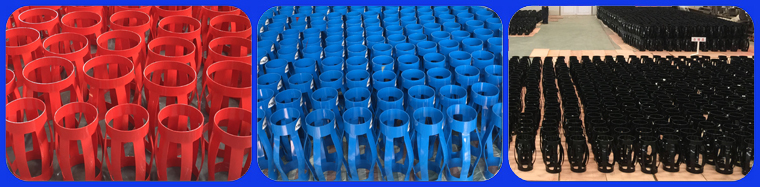

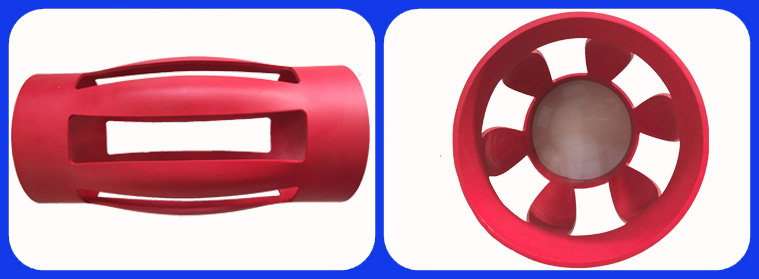

Single Piece Centralizer Product Show
Single Piece Centralizer Product Show

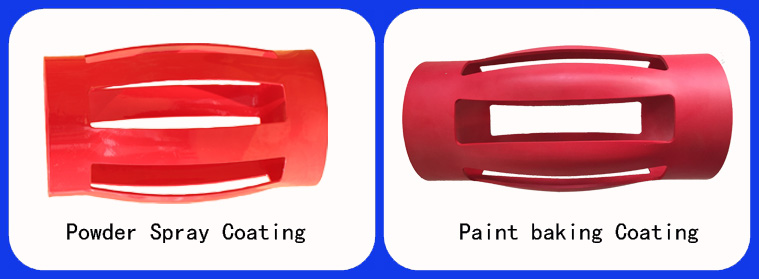

Single Piece Centralizer Coating
Single Piece Centralizer Coating


Single Piece Centralizer :Shuttle Bow Spring increases restoring force
Single Piece Centralizer

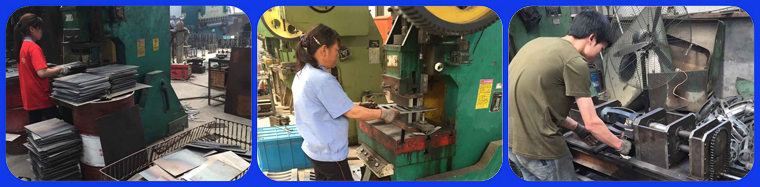

Single Piece Centralizer Production(Raw Material from 65Mn Steel Plate)

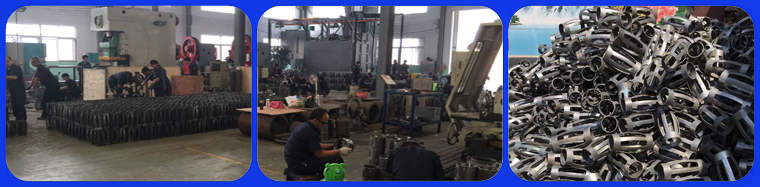

Single Piece Centralizer Production
Single Piece Centralizer Production
Single Piece Centralizer Production

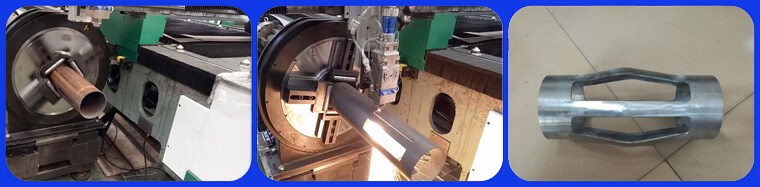

Single Piece Centralizer Production From Laser Cutting Machine(Raw Material from Spring Steel Pipe)

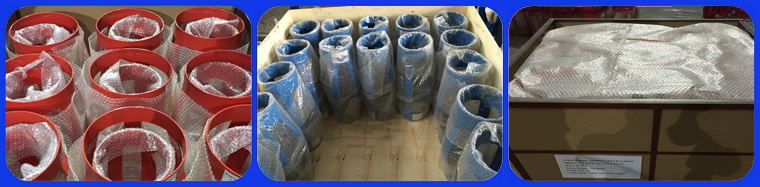

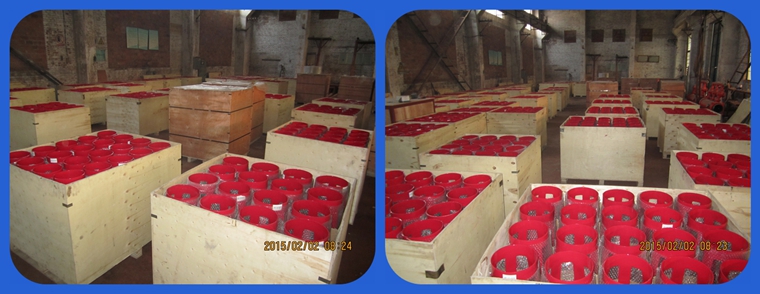

Single Piece Centralizer Package
Single Piece Centralizer Package
Single Piece Centralizer Package
Single Piece Centralizer Package

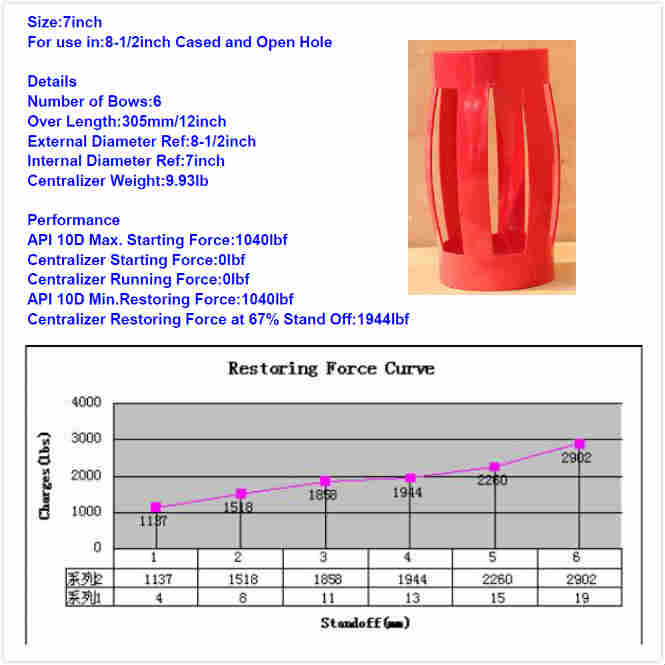

7*8-1/2 Single Piece Centralizer Restoring Force Data
7*8-1/2 Single Piece Centralizer Restoring Force Data



Single Piece Centralizer Restoring Force Vedio
