Bow Springs Centralizer-PC Type
1.Welded centralizer using laser cutting
2.Fixed on casing with special retaining screws
3.Made of high quality sheet steel
4.Consisting of two shells and six bow springs
![. $navinfor[alt2] .](/d/file/pc-type-bow-springs-centralizer-welded-centralizer.jpg)
![. $navinfor[alt3] .](/d/file/bow-springs-centralizer-pc-type-welded-centralizer.jpg)
![. $navinfor[alt4] .](/d/file/bow-springs-centralizer-pc-type-with-special-retaining-screws.jpg)

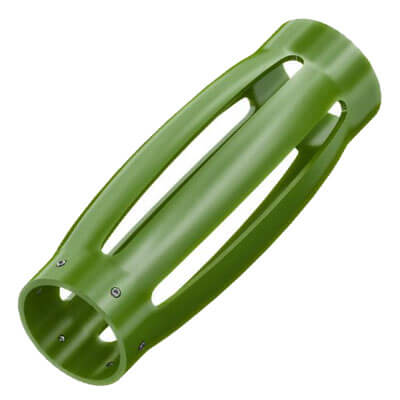

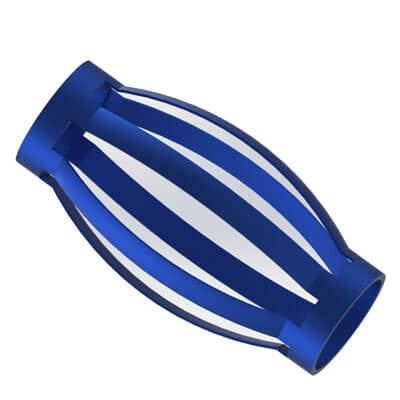

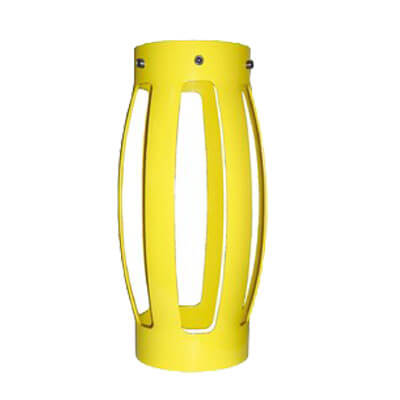

>>Type PC bow spring centralizer consists of two shells and six bow springs with a special profile and section.
>>This kinds of bow spring centralizer is made of high quality sheet steel using laser cutting.
>>The bow spring centralizer type PC is fixed on casing string with special retaining screws.
>>Bow spring welded centralizer type PC is used for centralizing of casing strings during cementing.
>>Bow spring centralizer welded type is provided with just two welds with minimum load at the sheel.
>>Centering planks of the bow centralizer have no welds and are made of solid steel sheet.
>>Uses of centralizers allows to achieve uniform clearance between casing pipe and wall well.
>>Centering of a casing string is provided with preset bow springs of a type PC centralizer.
>>They are available in 4 1/2" to 20" sizes.Any special sizes or combination can available on request.
