Tubing Couplings
1.Sizes from 1.05 to 4-1/2inch
2.Available with EUE and NUE Threads
3.Steel Grade:J-55, L-80, N-80, C-95, P-110
4.Surface has highly polished coating with clearly color band identification
5.Packaging: wooden pallet, tight wrapped /W paper carton
>>Tubing Couplings are short lengths of pipe used to connect 2 joints of tubing.
>>All the tubing couplings are manufactured to meet API Specification 5CT.
>>Tubing couplings are available with NUE Thread,EUE Thread.
>>API NUE tubing coupling is used much less than EUE tubing.
>>The cost of NUE is only slightly less than EUE, and the joint strength is substantially less.
>>The coupling joint diameter of NUE is less than EUE, which offers some advantages when clearance is small.
>>The Tubing Couplings are manufactured to meet the requirements of API 5CT certifications respectively.
>>The casing couplings are applied in casing whose sizes are from 1.05 to 4-1/2inch.
|
Size and Specifications For Tubing Couplings |
||||
|
Descriptions and size |
Type of Therad |
O.D*L |
Weight |
|
|
Tubing Coupling |
1.050 |
NUE |
33.35*80.96 |
0.23 |
|
1.050 |
EUE |
42.16*82.55 |
0.38 |
|
|
1.315 |
NUE |
42.16*82.55 |
0.38 |
|
|
1.315 |
EUE |
48.26*88.90 |
0.57 |
|
|
1.660 |
NUE |
52.17*88.90 |
0.59 |
|
|
1.660 |
EUE |
58.88*95.25 |
0.68 |
|
|
1.900 |
NUE |
55.88*95.25 |
0.56 |
|
|
1.900 |
EUE |
63.50*98.42 |
0.84 |
|
|
2-3/8" |
NUE |
73.02*107.95 |
1.28 |
|
|
2-3/8" |
EUE |
77.80*132.82 |
1.55 |
|
|
2-7/8" |
NUE |
88.90*130.18 |
2.34 |
|
|
2-7/8" |
EUE |
93.17*133.35 |
2.40 |
|
|
3-1/2" |
NUE |
107.95*142.88 |
3.71 |
|
|
3-1/2" |
EUE |
114.30*146.05 |
4.10 |
|
|
4" |
NUE |
120.65*146.05 |
4.35 |
|
|
4" |
EUE |
127.00*152.40 |
4.82 |
|
|
4-1/2" |
NUE |
132.08*155.58 |
4.89 |
|
|
4-1/2" |
EUE |
141.30*158.75 |
6.05 |
|
>>The steel grade of tubing couplings are available with J55, N80, L80, P110 ect.
>>Material has excellent performance in hardness and anti-collapse (Charpy test).

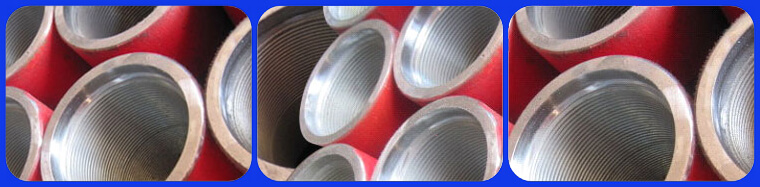

>>High machining accuracy, with strict internal control precision.
>>Excellent anti-adhesion performance on thread.
>>Tubing couplings are painted colour codes on their external surface to indicate their grades.
|
Grade |
Outside Painted |
|
H-40 |
Black |
|
J-55 or K-55 |
Green |
|
N-80 |
Red |
|
M-65 or L-80 |
Red with one Brown Band |
|
L-80 Type 9CR |
Red with two Yellow Bands |
|
L-80 Type 13CR |
Red with one Yellow Band |
|
C-90 Type 1 |
Purple |
|
C-90 Type 2 |
Purple with one Yellow Band |
|
T-95 Type 1 |
Silver |
|
T-95 Type 2 |
Silver with one Yellow Band |
|
C-95 |
Brown |
|
P-110 |
White |
|
Q-125 Type 1 |
Orange |
|
Q-125 Type 2 |
Orange with one Yellow Band |
|
Q-125 Type 3 |
Orange with one Green Band |
|
Q-125 Type 4 |
Orange with one Brown Band |

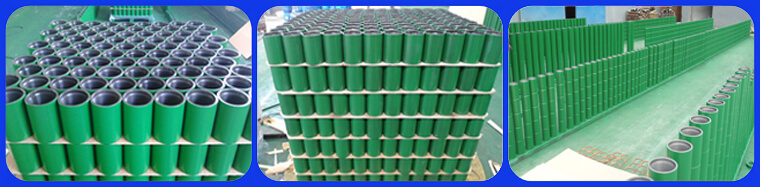

>>Packaging: wooden pallet, tight wrapped /W paper carton.

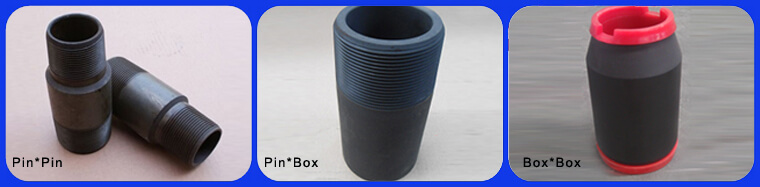

>>Crossovers(Subcouplings) For Casing and Tubing
