The Advantages of Straight Blades Solid Rigid Centralizer

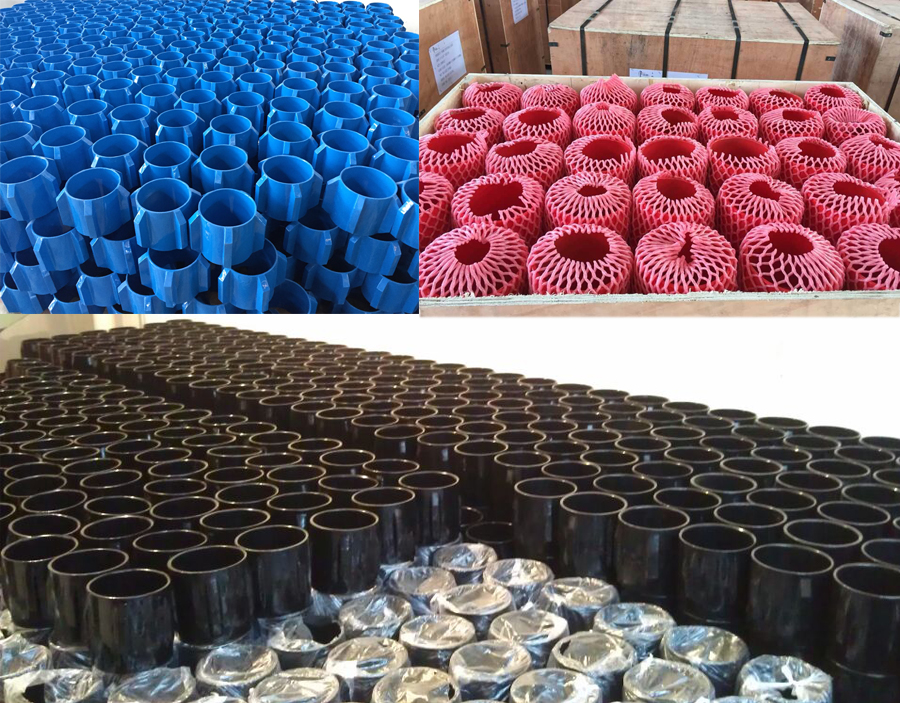

ZHENGZHOU, AUGUST 09,2016-Puyang Zhongshi Group manufactures straight blades solid rigid centralizer which is made of one piece high grade corrosion resistant casting steel. Features of casting steel solid rigid centralizer are high impact and shock resistant, high tensile and yield strength, easy installation and less flow restriction.

Casing Size	Hole Size	Nominal OD	Height	Number of Blades
In	In	In	In
5-1/2	8-1/2	8-1/4	8	4
7	8-1/2	8-1/4	8	6
9-5/8	12-1/2	12	15	8
10-3/4	14-3/4	14-1/2	15	8
13-3/8	17-1/2	17-1/4	15	8

Note:available in sizes from 5-1/2 to 20inch and in different blades according to requirement from customers.

These rigid centralizers are used where casing centralization is the main consideration, such as to centralize large casing strings to facilitate the cutting of casing during well abandonment.

This kinds of solid rigid centralizers are available with or without setscrews which are used to tighten the casing.The length is available in short as well as long.

Not only the straight blades solid rigid centralizer has function of self-cleaning going into wellbore,but also it is with less restriction of flow than other casing centralizers. Designed for use in highly deviated and horizontal wells and act as bearing during pipe rotations.
